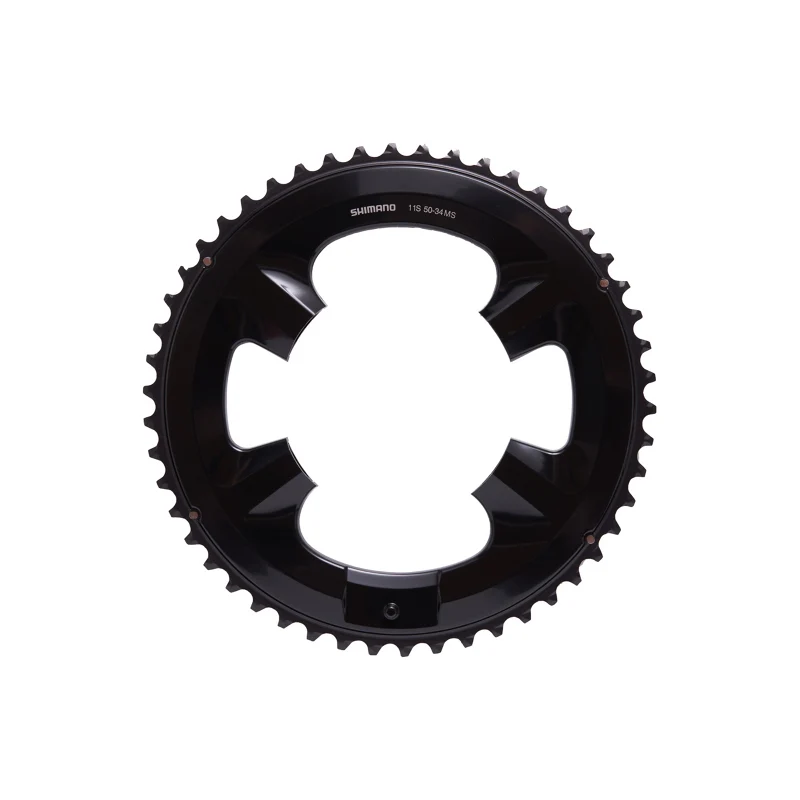

Shimano FC-RS510 Chainring

THE SHIMANO 11-SPEED CHAINRING FOR FC-RS510 CRANKS


The Shimano FC-RS510 11-speed chainring has a bolt circle diameter of 110 mm with asymmetric holes. As usual with Shimano, these chainrings have been designed to work smoothly with the other drivetrain components.


SPECIFICATIONS

Application: Road
Attachment: 110 mm pitch circle, 4-arm asymmetrical
Gearing: 2x11-speed
Compatibility: FC-RS510



34T

Designation: MS

Position: Inner



36T

Designation: MT

Position: Inner



46T

Designation: MT

Position: Outer



50T

Designation: MS

Position: Outer



52T

Designation: MT

Position: Outer



Note to Type Designation:
The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.
