Cadex Aero Integrated Road Handlebar

From scorching attacks to all-out sprints, this wind-slicing one-piece bar and stem is designed for competitive riders looking to break away from the pack. The flattened tops reduce frontal surface area for those moments when you're tucked deep and charging hard. A shallow 125mm drop and long 80mm reach reinforce an aero position and make transitions with your hand positions smooth and easy.


FEATURES

- Integrated bar-and-stem construction and internal cable routing for improved aerodynamic performance.
- One-piece, no-bond manufacturing on the drops, hoods and tops utilises high-grade carbon fibre and CADEX precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.
- Flattened tops improve aerodynamic efficiency.
- 80mm reach and narrow width at the hoods for natural aero positioning.
- T800 and T1100 carbon fibre keeps weight low without compromising strength or stiffness.
- Shallow drop makes transitions between hoods and drops fast and easy.
- 3-degree flare delivers enhanced control when descending, cornering and sprinting.
- 2-degree backsweep and gently curved ramps provide better grip and support during long rides.
- Shimano Di2 satellite shifter compatible.
- Out-front computer mount.
- Compatible with 1-1/4, 1-1/8 and OverDrive Aero steerer tubes with included carbon shims.

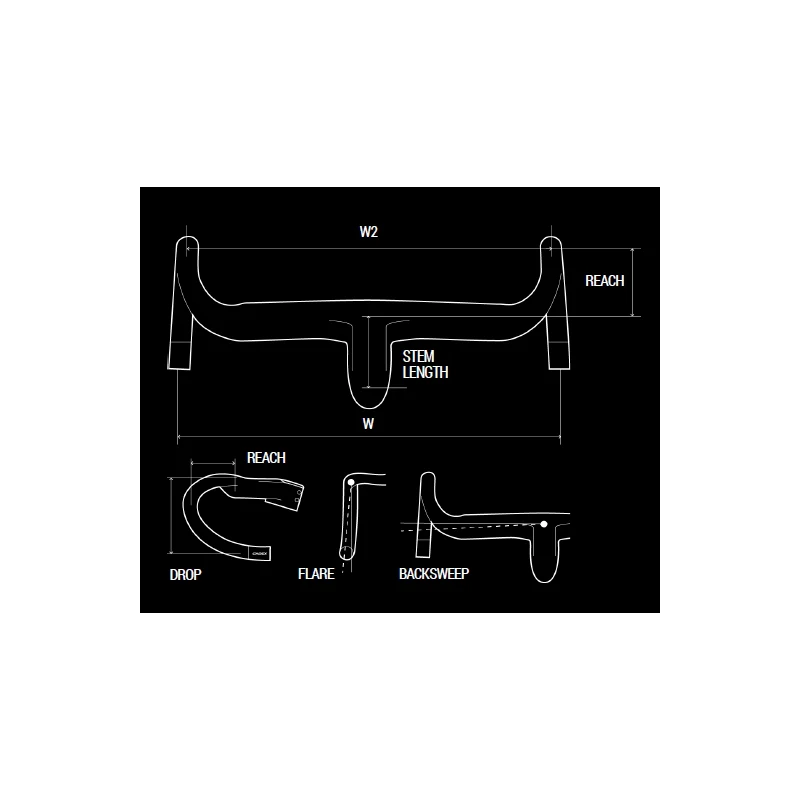

SPECIFICATIONS

Material: Carbon

Stem Angle: -10 degrees

Stem Clamp: 1 1/4 / 1 1/8 / OverDrive Aero (with carbon shim)

Stem Length: 80 / 90 / 100 / 110 / 120 / 130mm

Width: (Drop to Drop): 360 / 380 / 400 / 420mm / 440mm

Width (Hood to Hood): 340 / 360 / 380 / 400mm / 420mm

Drop: 125mm

Reach: 80mm

Flare: 3 degrees

Backsweep: 2 degrees

Weight: 325g (420mm x 100mm bar)

Included Accessories: 1 1/8 spacer, OverDrive Aero spacer, 2021-2023 TCR spacer, OverDrive Aero shim 1 1/4 to 1/8 shim, CADEX out-front computer mount
